Variable ISI
- Continuously Variable
- Passive
- DC Coupled
- Repeatable & Stable
- Remote Controllable

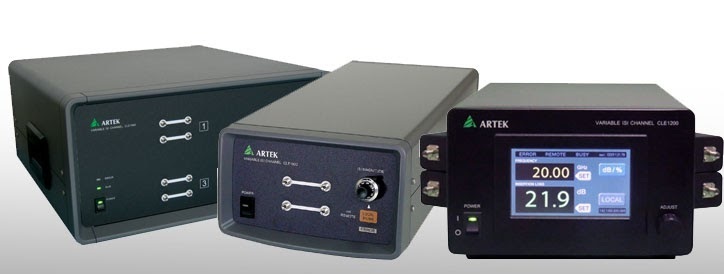

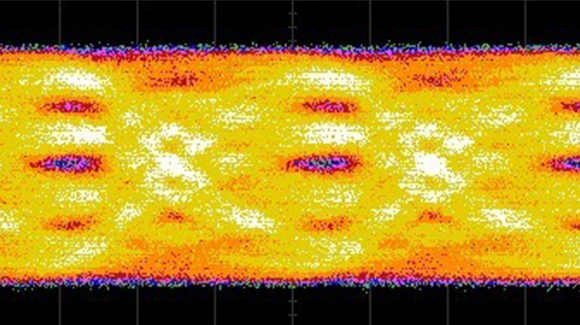

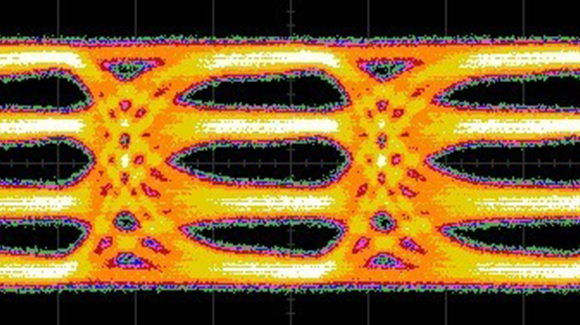

Applied with Artek's unique technology for analog / mixed signal and advanced electro-magnetics, the CLE1200 & CLE1000 are designed as a variable Inter-Symbol-Interference (ISI) channel for high speed serial interface stress tests. It controls the insertion loss continuously at 0.1% step (1,000 steps) in its dynamic range for fine adjustment. The differential transmission lines are totally passive and DC coupled. The adjusted insertion loss amount is reliably repeatable and stable for secure test results. The control is done by the volume dial on the front panel and/or PC remote via USB (and Ethernet) for automated calibration. Four (4) models of different loss range are prepared to cover various data rates. 4ch versions are also available. The CLE1200 & CLE1000 are convenient ISI channel, applicable for various standard stress tests and compliance tests.
The variable insertion loss is achieved by controlling the electromagnetic field spatially around the transmission lines, which are electrically isolated from any components. Patent No.: US 10,200,216 B2

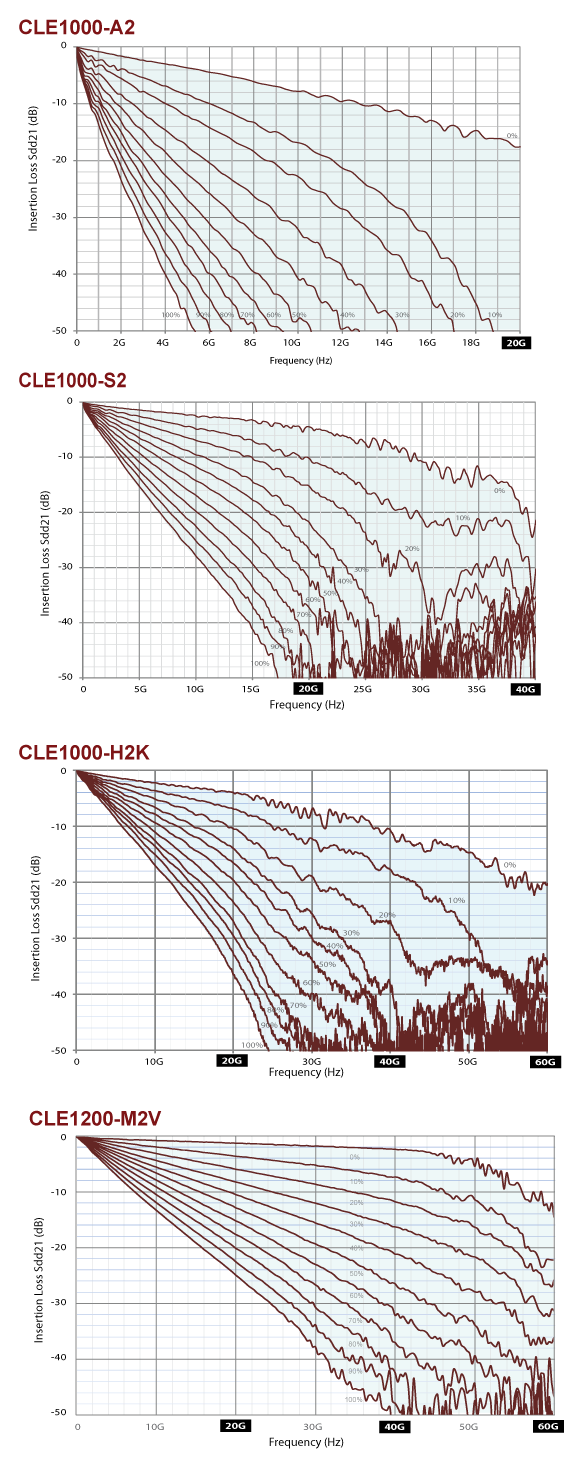

| Typical Examples - Model vs Frequency vs Insertion Loss (dB approx) | ||||||
|---|---|---|---|---|---|---|
| Baud Rate | Nyquist Freq. | CLE1000-A2 | CLE1000-S2 | CLE1000-H2K | CLE1200-M2V | CLE1200 + EXP1200 |
| 1.5G baud | 0.75GHz | 0.7 ~ 11 | 0.4 ~ 3.0 | 0.3 ~ 1.8 | < 0.3 | 4.8 ~ 6 |
| 3G baud | 1.5GHz | 1.3 ~ 19 | 0.6 ~ 5.5 | 0.6 ~ 3.0 | < 0.3 | 7 ~ 9 |
| 5G baud | 2.5GHz | 2.0 ~ 27 | 0.8 ~ 8.2 | 0.7 ~ 4.5 | < 0.5 | 9 ~ 13 |
| 8G baud | 4GHz | 3.0 ~ 40 | 1.2 ~12.5 | 1.2 ~ 6.8 | 0.6 ~ 5.6 | 11 ~ 17 |
| 10G baud | 5GHz | 3.7 ~ 47 | 1.4 ~ 15 | 1.4 ~ 8.5 | 0.6 ~ 7.0 | 12 ~ 20 |
| 12G baud | 6GHz | 4.5 ~ 54 | 1.6 ~ 18 | 1.5 ~ 10 | 0.7 ~ 8.3 | 14 ~ 22 |
| 14G baud | 7GHz | 5 ~ | 1.8 ~ 20 | 1.7 ~ 12 | 0.8 ~ 9.6 | 15 ~ 25 |
| 16G baud | 8GHz | 6 ~ | 2.0 ~ 23 | 1.9 ~ 13 | 0.9 ~ 10 | 16 ~ 27 |
| 20G baud | 10GHz | 8 ~ | 2.5 ~ 27 | 2.3 ~ 17 | 1.0 ~ 13 | 19 ~ 31 |
| 25G baud | 12.5GHz | 10 ~ | 2.9 ~ 33 | 2.8 ~ 21 | 1.2 ~ 16 | 21 ~ 36 |
| 28G baud | 14GHz | 11 ~ | 3.1 ~ 38 | 2.9 ~ 23 | 1.3 ~ 18 | 23 ~ 40 |
| 32G baud | 16GHz | 13 ~ | 3.5 ~ 44 | 3.3 ~ 27 | 1.4 ~ 20 | 24 ~ 42 |
| 40G baud | 20GHz | 18 ~ | 4.5 ~ 50 | 4.1 ~ 36 | 1.8 ~ 25 | 28 ~ 50 |
| 52G baud | 26GHz | 25 ~ | 7 ~ | 5.7 ~ 52 | 2.4 ~ 32 | 33 ~ 60 |
| 56G baud | 28GHz | 27 ~ | 9 ~ | 6.5 ~ | 2.5 ~ 34 | 35 ~ |
| 80G baud | 40GHz | 37 ~ | 22 ~ | 11.0 ~ | 5.3 ~ 52 | 48 ~ |
| CLE Series : CLE Remotes | ||
|---|---|---|
| Model | CLE1500 / CLE1200 | CLE1000 |
| Ethernet | TCP/IP Socket | N/A |
| IEEE Std488 / SCPI compatible | ||
| USB | Interface: USB 2.0 | |
| OS: Windows 11 | ||
| Included: Device driver, GUI Software | ||
| Commands: IEEE Std488 / SCPI compatible | ||
| * Physon sample codes are provided in the program manuals | ||
| CLE Series : CLE Spec | |||
|---|---|---|---|
| CLE1500 | CLE1200 | CLE1000 | |
| Transmission Line | Single-end DC couple 50hom | Single-end DC couple 50hom | Single-end DC couple 50hom |
| Connectors | 1.85mm(V) female | M2V: 1.85mm(V) female | (A2): SMA (S2/H2K): 2.92mm(K) female |
| Input Tolerance | 10Vpp-max | 10Vpp-max | 10Vpp-max |
| Delay | 1.13ns +/- 40ps approx. | 1.13ns +/- 40ps approx. | (A2): 3.8ns +/- 600ps approx (S2) : 2.2ns +/- 200ps approx (H2K): 1.58ns +/- 70ps approx. |
| Power | AC 85V~264V 50/60Hz, 70VA max | AC 85V~264V 50/60Hz, 70VA max | AC 85V~264V 50/60Hz, 70VA max |
| Dimensions | 200(W) x 120(H) x 420(D)mm | 200(W) x 120(H) x 420(D)mm | CLE1000 (single channel) 190(w) x 110(h) x 400(d) mm CLE1040 (4ch version) 453(w) x 221(h)x456(d) mm |
| CLE Series : Order | |
|---|---|
| Model Numebr | Description |
| CLE1000-A2-T2 | 2x Single-ends, SMA Connector |
| CLE1000-S2-T1 | 2x Single-ends, 2.92mm (K) Connector |
| CLE1000-H2K-T1 | 2x Single-ends, 2.92mm (K) Connector |
| CLE1200-M2V-T1 | 2x Single-ends, 1.85mm (V) Connector |
| CLE1500-T1 | 2x Single-ends, 1.85mm (V) Connector |
| CLE1040-A2-T2 | 4ch of 2x Single-ends, SMA Connector |
| CLE1040-S2-T1 | 4ch of 2x Single-ends, 2.92mm (K) Connector |
| CLE1040-H2K-T1 | 4ch of 2x Single-ends, 2.92mm (K) Connector |
| CLE1240-M2V-T1 | 4ch of 2x Single-ends, 1.85mm (V) Connector |
| CLE1100-DP-T2 | Consits of CLE1000-A2, CLE1000-H2K and a wideband switcher in one box |

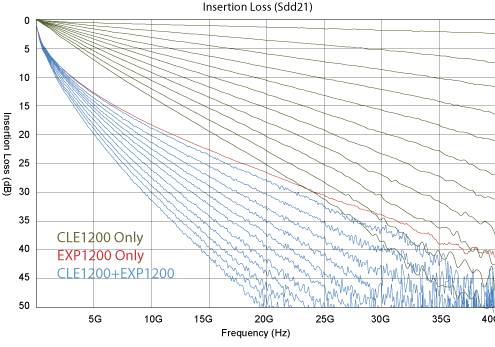

| IL Extender for CLE1200 | |
| EXP1200-2012-V-T1 | |

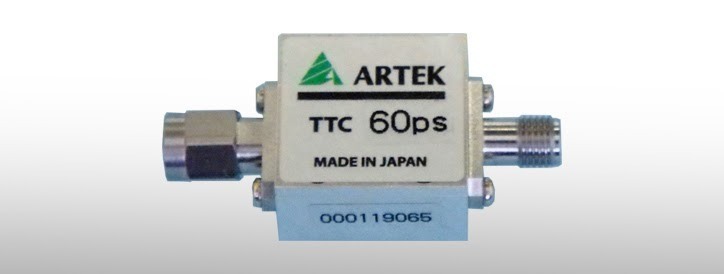

| Transition Time Converter | |
| TTC6000-60 | 60ps - SMA connector |
| TTC6000-100 | 100ps - SMA connector |
| TTC6000-150 | 150ps - SMA connector |
